Ford F-150 parts interchange by generation: what swaps and what doesn't

The F-150 has run continuously since 1975, with the modern F-150 nameplate (separate from the F-100/F-250) starting in 1980. That’s 14 generations of trucks, and the rules for which parts interchange are different for each. The big rule: parts swap within a generation, rarely across one. The exceptions are the long-running rear ends, some accessories, and certain wheels.

The F-150 generations at a glance

The 2015 aluminum body switch is the biggest single break in parts compatibility in F-150 history. Anything 2014 and earlier is steel; anything 2015 and later is aluminum, and most body panels are not interchangeable across that line even when they look identical.

Body panels

7th to 9th gen (1980 to 1996): Doors, cabs, and fenders interchange across this range with some sub-period catches. 1980 to 1986 fenders fit 1980 to 1986 only. 1987 to 1991 share, and 1992 to 1996 share. Cabs and doors largely carry the same mount points across the whole range, which is why old F-150 restoration projects can pull from a wide donor pool.

10th gen (1997 to 2003): All-new in 1997. Body panels swap across 1997 to 2003 trucks but won’t fit anything older or newer. The 1997 redesign also introduced the SuperCrew four-door body, which has its own door and cab parts.

11th gen (2004 to 2008): Hood and grille interchange across the whole run. Fenders are also common. Bumpers split between early (2004 to 2005) and late (2006 to 2008) sub-ranges. Cab variants (Regular, SuperCab, SuperCrew) have their own door and trim parts that don’t swap between cab styles.

12th gen (2009 to 2014): Most body panels swap across the whole generation. A mid-cycle refresh in 2013 changed the grille, headlights, and front bumper, so those parts split into 2009 to 2012 and 2013 to 2014 sub-pools.

13th gen (2015 to 2020): Aluminum panels. The 2018 refresh changed the front fascia (hood, grille, bumper, headlights) but most rear and side panels carry through.

14th gen (2021 onward): Mostly compatible across years. Lightning EV trim shares much of the cab with the gas trucks but has unique front-end parts.

Engines

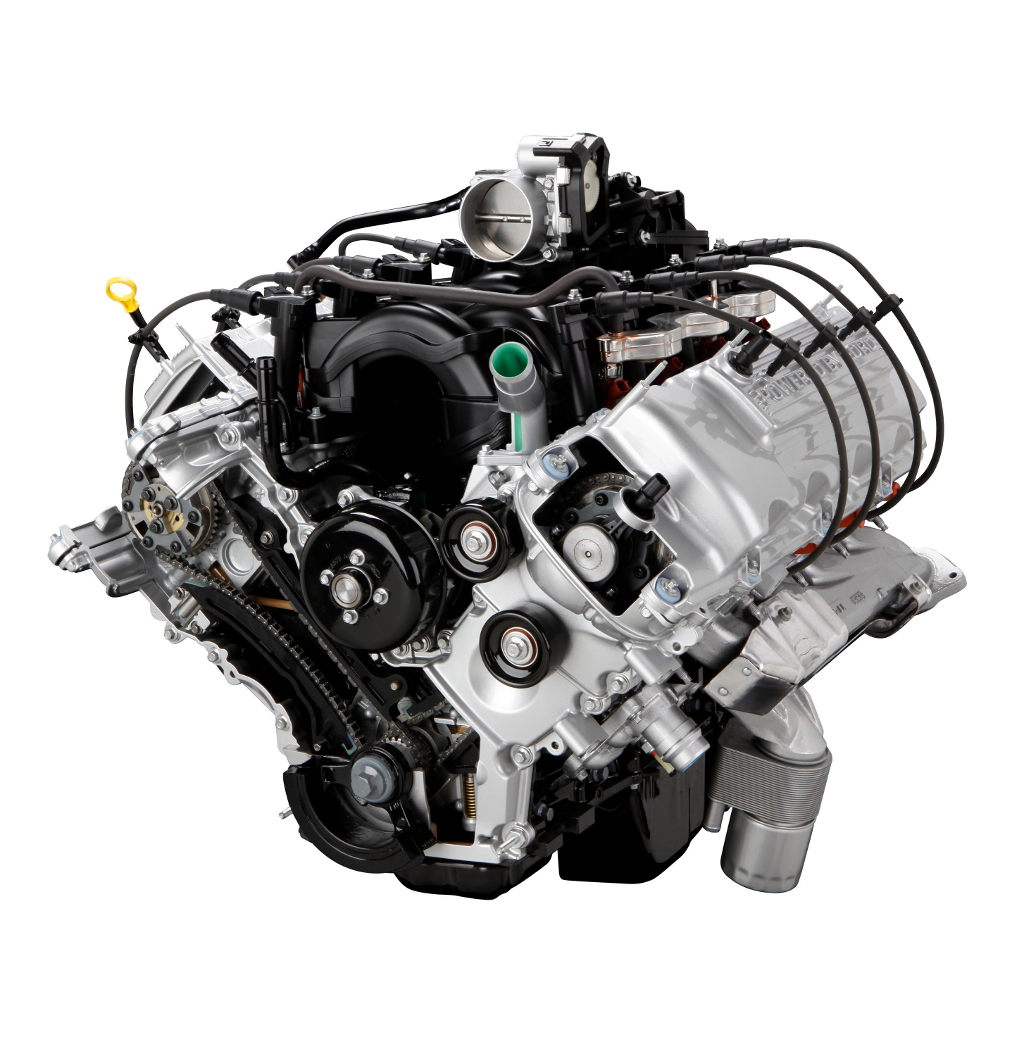

The general rule: engines swap freely within the same engine family and similar production years. A 5.0L Coyote from a 2014 F-150 will fit a 2011 to 2014 F-150 with mostly direct bolt-up. The 2018+ Gen 3 Coyote is a different engine internally and needs a matching ECU and harness.

Cross-family swaps (putting a 5.0 Coyote in a 4.6 Triton truck) work but require new mounts, harness, ECU, fuel system, and often a new transmission to handle the power. They’re full custom jobs, not bolt-in.

Transmissions

Transmissions are engine-family specific:

• 4R70E / 4R75E: 1997 to 2008 4.6L and 5.4L Triton trucks. Largely interchangeable across years with the same engine.
• 6R80: 2009 to 2017 across most engines (5.0, 5.4, 3.5 EcoBoost). One of the most flexible F-150 transmissions for swaps.
• 10R80 (10-speed): 2017 onward. Different internals for V6 versus V8 applications and different controllers. Not a casual swap.

Always pull the transmission tag and match the full part number. A 6R80 from a 5.0 Coyote truck and a 6R80 from a 3.5 EcoBoost truck have different torque converters and final drives even though the case is identical.

Cargo boxes (beds)

Beds split by generation and by bed length:

• 9th gen (1992 to 1996): Short bed (6.5 ft) and long bed (8 ft) swap within the range.
• 10th to 11th gen (1997 to 2008): Short, standard (6.5 ft), and long (8 ft) beds. Beds swap within each generation but not across the 1997/1996 line or the 2004/2003 line.
• 12th gen (2009 to 2014): 5.5 ft, 6.5 ft, and 8 ft beds. Same generation swap fine, but flareside (stepside) and styleside (fleetside) are different parts.
• 13th gen (2015 onward): Aluminum beds. Drop into 2015 to 2020 trucks of the same bed length. Don’t fit any steel-body truck.

Beware: a 13th gen aluminum bed will not bolt to a 12th gen steel frame even though the bed bolt pattern looks compatible. Frame crossmembers changed slightly with the aluminum-body redesign.

Wheels

Older trucks (1980 to 1997): Most steel wheels and Ford-OEM alloys share a 5x5.5” (5x139.7mm) bolt pattern across the range. A wheel from a 1990 F-150 will fit a 1995 F-150.

1997 to 2003: 5x135mm bolt pattern, unique to this generation. Doesn’t fit older or newer trucks.

2004 to 2014: 6x135mm bolt pattern.

2015 onward: Still 6x135mm. Wheels from a 2015 to 2020 truck fit a 2021 truck and vice versa.

The bolt pattern is only half the story. Offset, hub bore, and center cap fit also matter. Aftermarket wheels marked “fits 2004 to 2024 F-150” usually have the right pattern but may need spacers to clear newer brake calipers.

Doors and cabs

1980 to 1996: Cab and door designs change very little. A regular-cab F-150 door from 1992 fits a 1985 truck after minor trim work. The whole F-Series shared cabs in this range, so F-250 and F-350 donor trucks count too.

1997 onward: Cab styles (Regular, SuperCab, SuperCrew) each have their own door parts. Doors don’t swap between cab styles. Doors do swap within the same cab style across a generation.

2015 onward: Aluminum doors. Same generational rules. Won’t swap to or from a steel-body truck.

Smaller parts that swap surprisingly well

• Headrests and seatbelts (1997 onward): Mostly interchangeable across two generations.
• Cargo light covers (2004 to 2014): Same part across the 11th and 12th gens.
• Rear sliding window (1997 to 2008): Common 10th and 11th gen part.
• Tailgate latch (2004 to 2014): Same mechanism across both generations.
• Bed rails (within bed length): Aftermarket bed rails sold as fitting 2004 to 2014 usually do.

Smaller parts that look the same but don’t swap

• Mirrors: Power, heated, signal-in-glass, and trailer-tow variants don’t swap even within a year, despite identical housings.
• Door handles (2015 onward): Keyless entry trim differs from base trim. Swapping the wrong one fails the keypad.
• Headlight assemblies (2018 onward): LED versus halogen are different connectors and different control logic.
• Brake calipers (2009 onward): EcoBoost and V8 trucks have different rotor sizes within the same model year.

Reading the door jamb sticker

Every F-150 has a Safety Compliance Certification Label on the driver’s door jamb. It lists the GVWR, axle codes, transmission code, and a five-digit equipment code. When sourcing a donor part, match those codes, not just the model year. Two 2012 F-150s can have completely different rear axles and transmissions depending on trim.

When to walk away

A few situations where buying a “compatible” used part is usually a bad deal:

• Anything 2014 trying to fit a 2015 (steel-to-aluminum line).
• Wheels with the same bolt pattern but different offset (will rub on tires or brakes).
• Engines without the matching ECU and harness.
• Bumpers from a different sub-period within the same generation (mounting holes shifted).
• Body panels showing rust at the mount points, regardless of how clean the visible surface looks.

The cost of bolting on the wrong part is usually higher than just buying the right one. Verify the donor by checking the part number against your truck’s parts catalog before committing.
